Yield is often discussed as a manufacturing percentage, but it is the outcome of design margin, process capability, measurement quality, material consistency, and acceptance rules. They cannot improve it reliably until they know why units fail. A test system that changes between runs can create false rejects, hide weak devices, or send engineering teams toward the wrong process correction.
Photonic products are especially sensitive to coupling, polarization, connector cleanliness, bias, source stability, and temperature. These variables can move during measurement even when the device remains unchanged.
They therefore treat the test station as a controlled process, with capability studies and maintenance limits similar to the manufacturing steps it is intended to monitor. Engineering dashboards show distributions and station health together, discouraging teams from celebrating a yield increase before confirming that measurement conditions remained unchanged.
Well-designed fiber optic test equipment provides stable stimulus, monitoring, attenuation, and bias control for repeatable comparisons. Used with traceable procedures and device history, it helps them distinguish optical loss, modulation response, control drift, and assembly variation, creating more useful evidence for process engineers than a simple pass or fail result.
Yield Improvement Begins by Separating Product Variation from Test Variation
Before changing a process, they quantify the repeatability and reproducibility of the optical measurement system. The same units are measured across operators, fixtures, stations, and days. They calculate how much of the observed spread comes from the measurement system.
If that contribution is large relative to product tolerance, yield analysis must begin with the station rather than the wafer or package. For daily control, optical measurement equipment should use reference paths and control samples to identify drift. They monitor source power, wavelength, RF response, detector linearity, and connector condition at defined intervals.
Automated checks can stop testing when a reference moves beyond limits. This prevents a slow station change from producing a batch of questionable data that later requires expensive retest. Acceptance limits also affect apparent yield.
They derive them from system requirement, uncertainty, process distribution, and the cost of escapes or false rejects. Guard bands are reviewed when the measurement method changes. Tightening a limit without evidence may reduce reported yield without improving customer performance, while an overly broad limit can shift failures into later assembly stages.
Integrated Measurement Functions Can Accelerate Fault Isolation
By consolidating the stimulus path, an integrated EO transmitter can make fiber optic test equipment more consistent by combining a DFB source, optical monitoring, attenuation, and automated bias control. Fewer external connections may reduce setup variation.
They still inspect internal calibration and monitor accuracy, because integration must improve observability rather than turn several potential error sources into one opaque box. Automatic stabilization is particularly useful when optical measurement equipment tests intensity modulators over long sequences.
Bias drift can change extinction and waveform quality, creating failures unrelated to assembly. Logging the control voltage and correction rate reveals whether stabilization is compensating normal movement or masking a device population that requires excessive adjustment and may be unsuitable for the product.

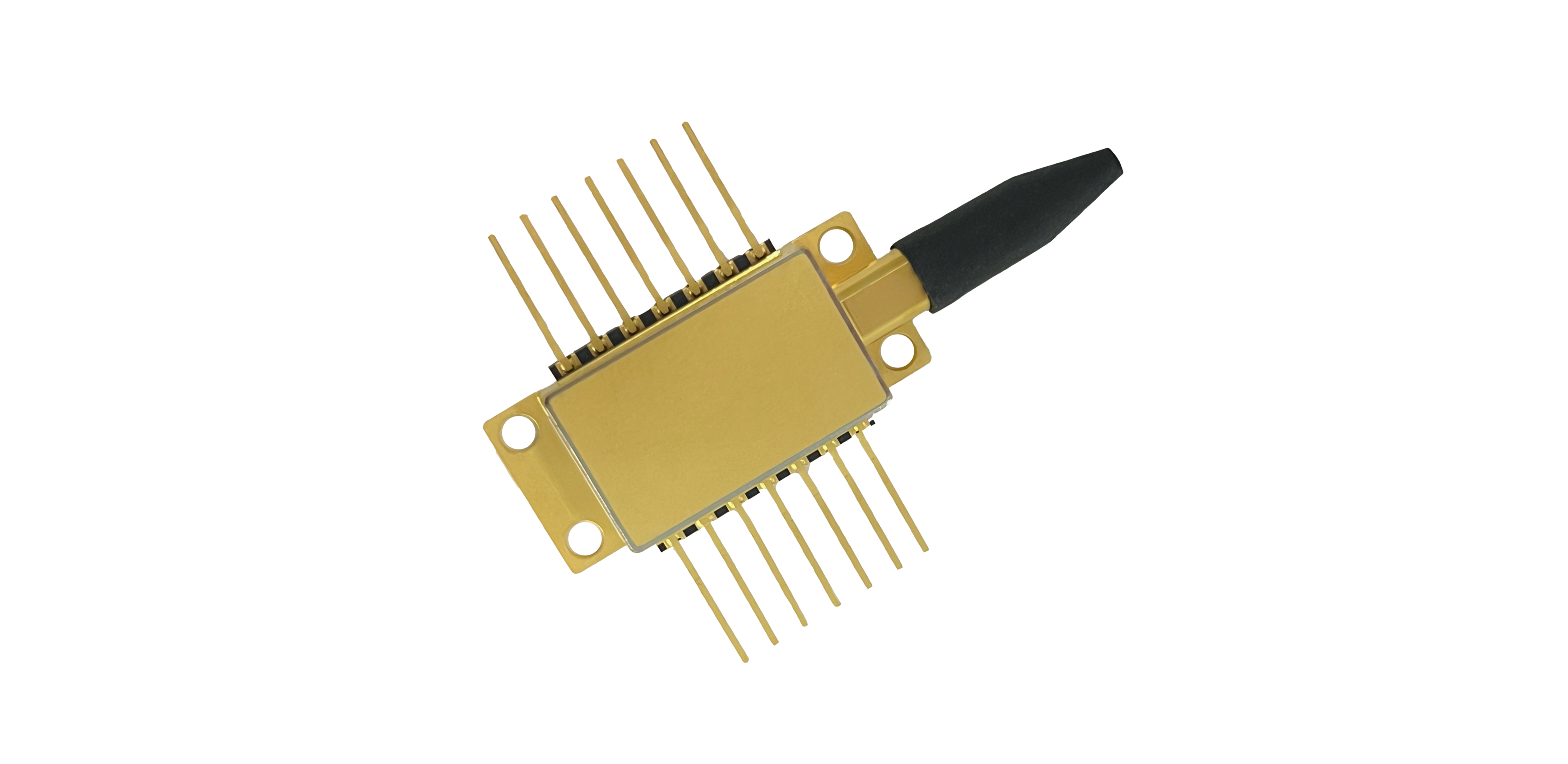

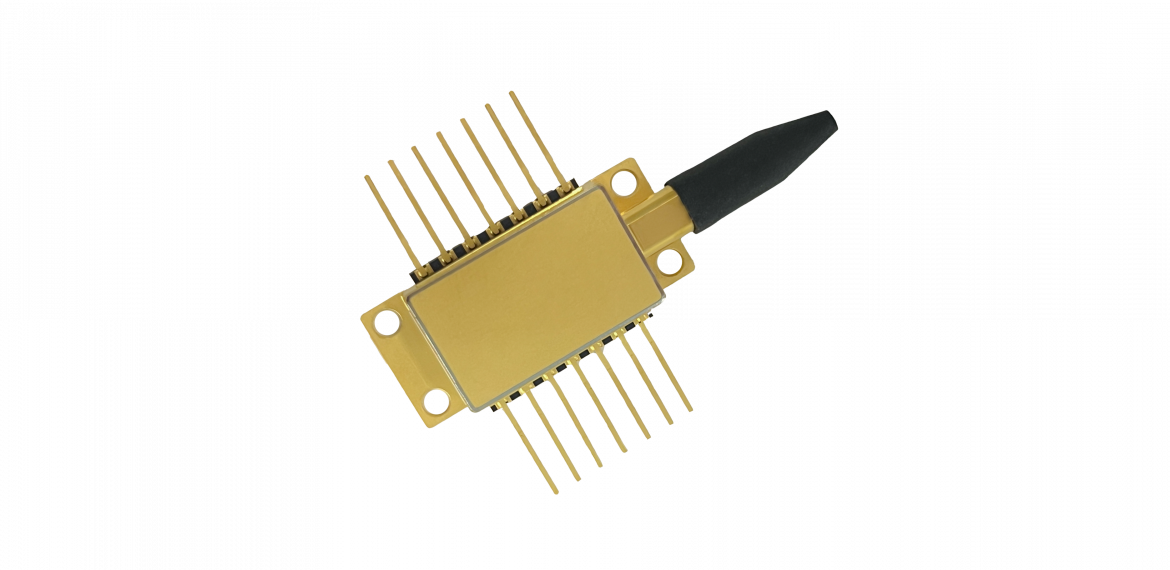

Where phase stability matters, a narrow-linewidth source supports coherent and sensing devices that depend on phase or chirp stability. Stable wavelength, linewidth, output, and sweep behavior can reduce source-related spread. They use the source as a controlled reference, then examine residual variation in the device and package.
This improves fault isolation but does not replace calibration, polarization control, or appropriate detector capability. They assign financial value to faster diagnosis and reduced retest, because those savings may justify equipment improvements even when the headline pass yield changes to a limited degree.
Statistical Feedback Connects Test Results with Process Control
Yield learning accelerates when fiber optic test equipment data is connected to wafer location, assembly tool, material batch, operator, fixture, and station. They preserve continuous values instead of pass/fail codes. Trend analysis can then show whether loss follows a coupling process, bandwidth follows an electrode step, or bias demand changes with package stress.
To preserve process traceability, optical measurement equipment should provide accessible data and stable automation. File formats, units, timestamps, and configuration records are standardized. They validate software changes with reference datasets and version control.
Inconsistent naming or hidden corrections can destroy the relationships needed for statistical analysis even when the underlying measurements are technically accurate. Corrective action is verified with controlled experiments and subsequent production monitoring.
They compare distributions before and after a process change, watching both the target metric and possible side effects. Test limits remain unchanged during the study unless the measurement itself changed. This discipline prevents temporary improvement or selective retest from being reported as sustainable yield progress.
Measurement equipment improves yield indirectly by making variation visible, repeatable, and traceable. It cannot create good devices, but it can identify where margin is being lost and confirm whether corrective action works. The main contribution comes from a station whose own uncertainty is understood and small enough to support the manufacturing decision.
Their yield program therefore combines measurement-system analysis, stable references, continuous-data retention, process correlation, and controlled verification. They also track false rejects, retest rates, station downtime, and fault-isolation time. These operational measures reveal whether improved data is reducing total manufacturing cost rather than merely changing the reported yield percentage.
Yield improves when measurement records can be traced back to wafer, assembly, fixture, operator, and station conditions. Evaluating Liobate equipment within that data chain makes its diagnostic value and cycle-time effect visible alongside measurement uncertainty.
